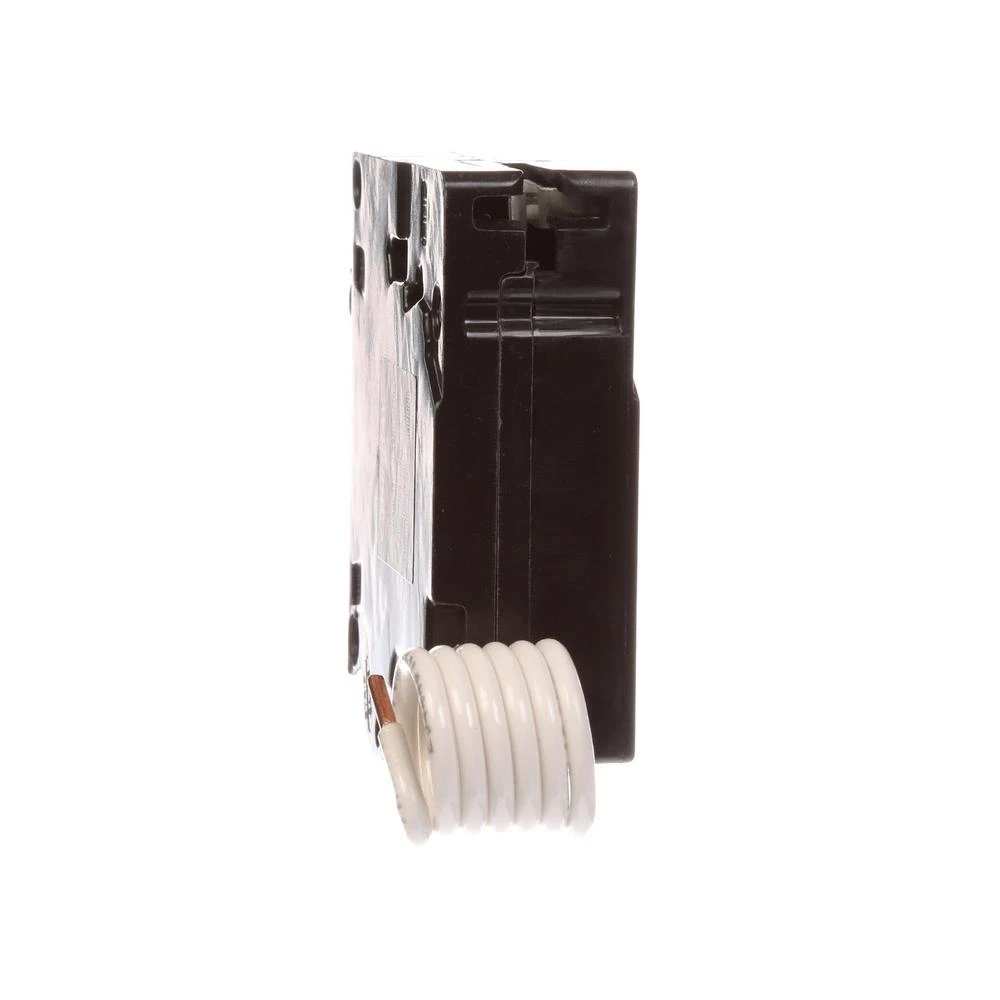

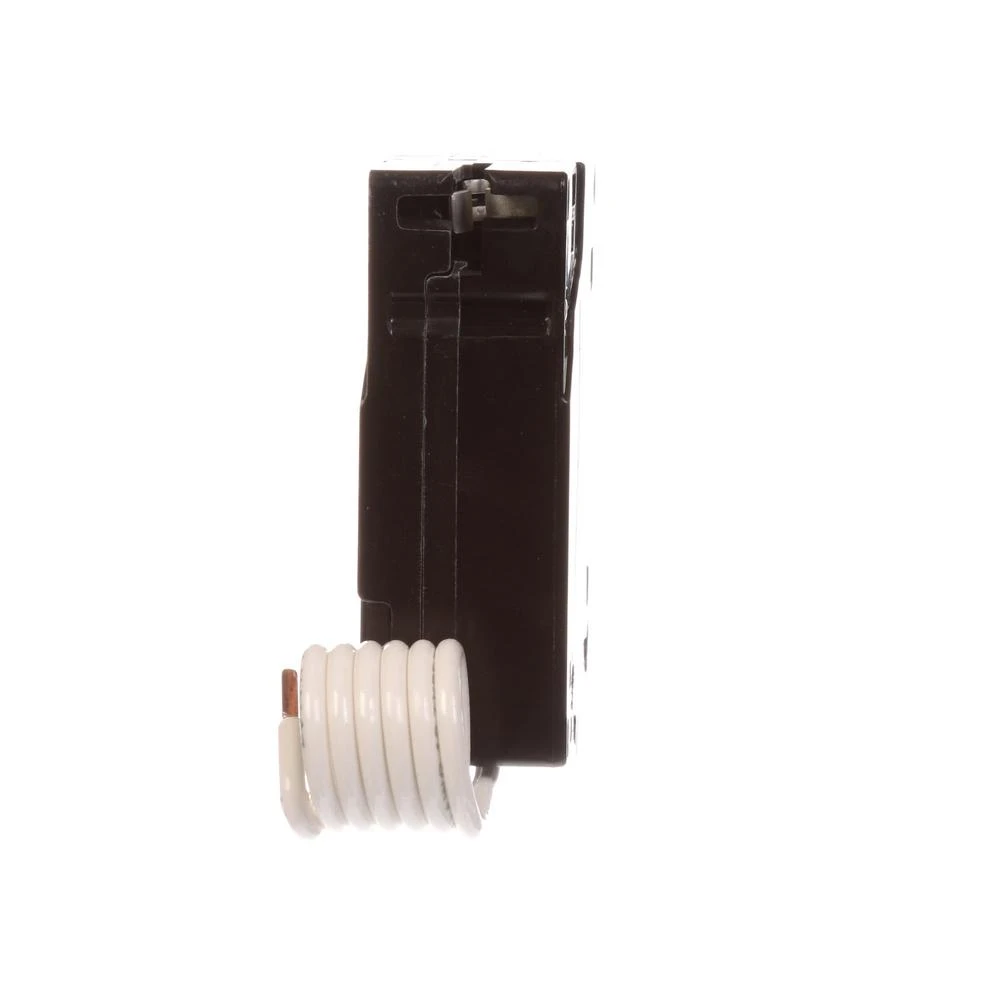

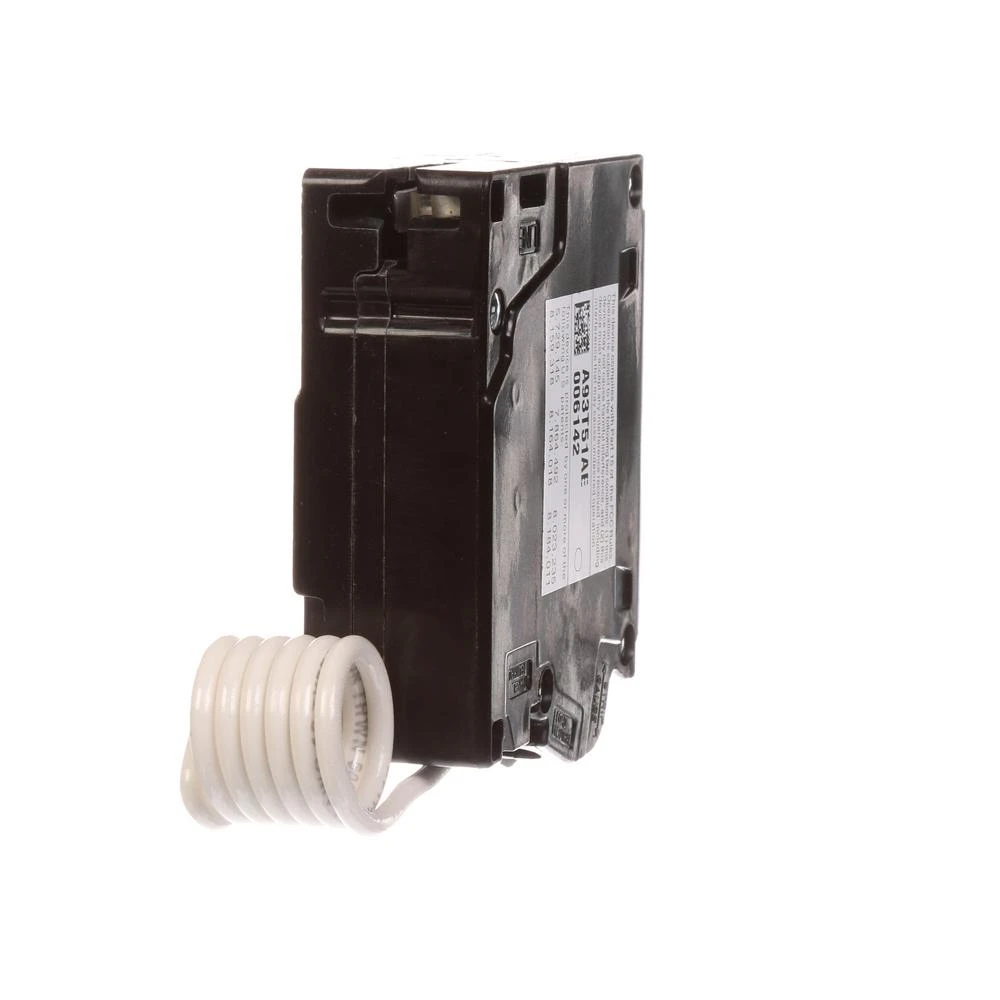

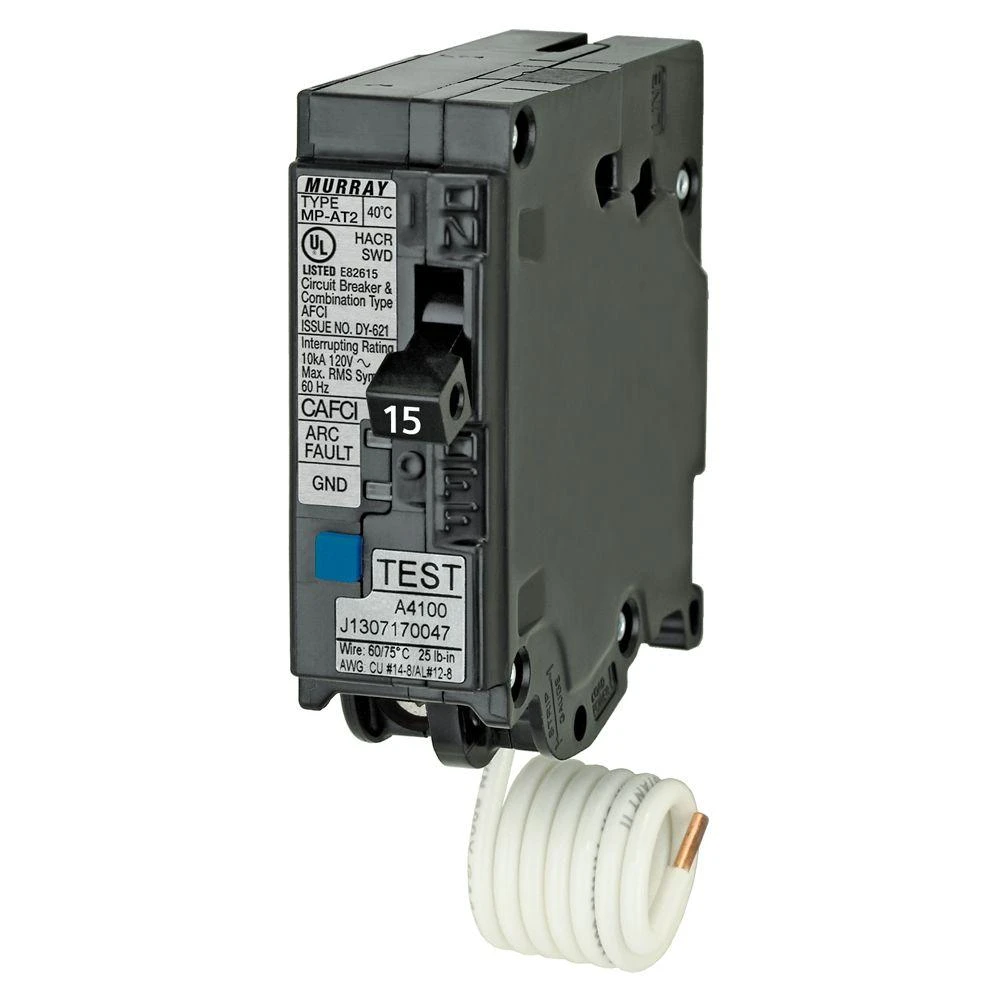

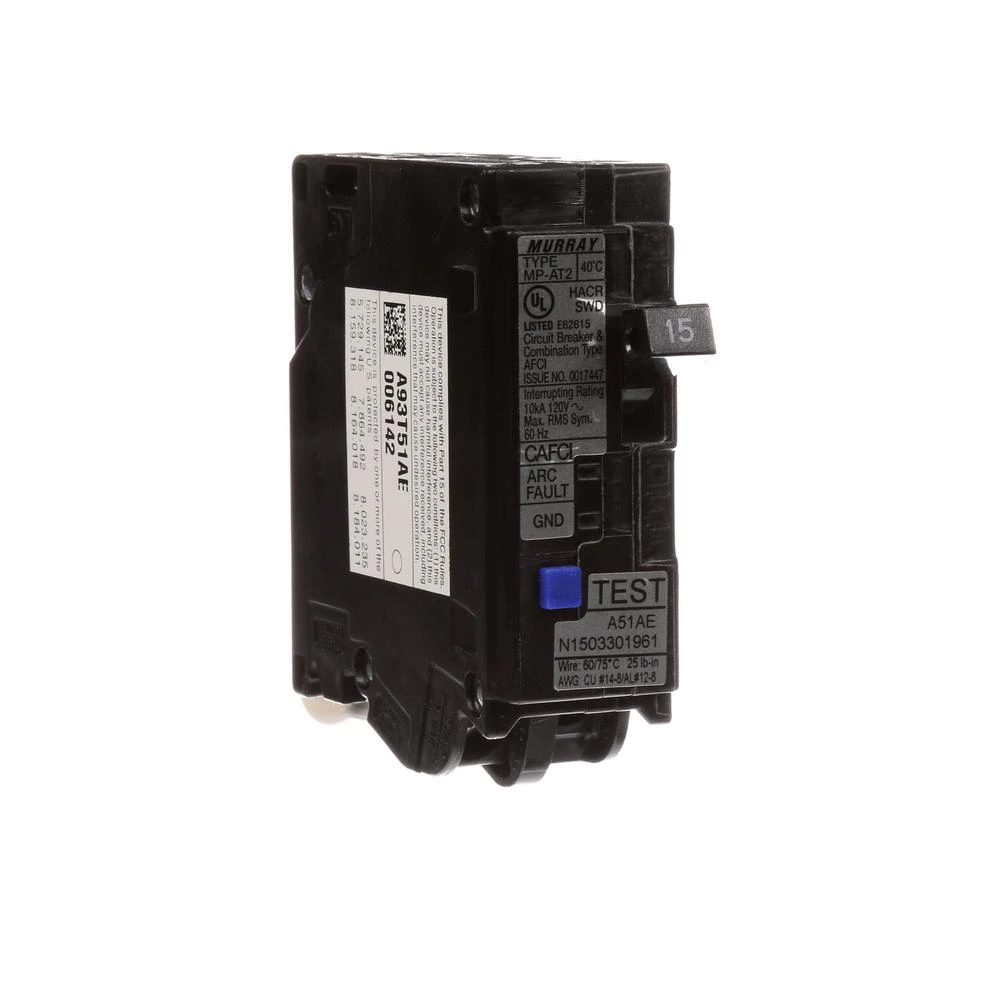

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker - Image 2

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker - Image 3

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker - Image 4

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker - Image 5

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker - Image 6

15 Amp 1 In. Single-Pole Combination AFCI Circuit Breaker

Original price was: $39.13.Current price is: $27.39.

SKU: YXJIB 495286154 Categories: ARB775W, Electrical Tag: In Stock Hardwarestore Delivery

Secure Shopping Starts with Safe Payments
We take quality seriously.
Experience the Best Quality
Buy with Confidence, Get Quality

This Murray 15 Amp 1 in. Single Pole Combination AFCI Circuit Breaker trips to the center position and features LED trip indicators. This combination breaker is intended for use as a circuit breaker and AFCI device. This breaker is UL listed.

1/4 in. more wiring bend space than the previous design
LED trip indicators
Both lugs at the same angle for easier wiring
120 VAC and available with interrupting rating of 10kA, 22kA, or 65kA
Plug-In branch circuit breakers for Murray single phase load centers
Bolt-on branch circuit breakers for Siemens panelboards
Wire range: #14 – #8 AWG Cu #12 – #8 AWG Al
Torque rating: 25 lb. in.
UL listed
LED Trip Indicators identify the cause of the last AFCI trip
Protects from dangerous electrical arcing caused by damaged wire

Features

Item Weight	0.4
Voltage (volts)	120
Interruption Type	CAFCI
Maximum Amperage (amps)	15
Number of Poles	1
Power Distribution Features	No Additional Features
Pack Size	1
Returnable	180-Day
Mounting Type	Plug-On
Breaker Type	Single Pole
Electrical Product Type	Breaker
Product Weight (lb.)	0.4 lb
Product Depth (in.)	1.5 in
Product Width (in.)	6.5 in
Product Height (in.)	6.5 in
Manufacturer Warranty	1 Year
Certifications and Listings	UL Listed
