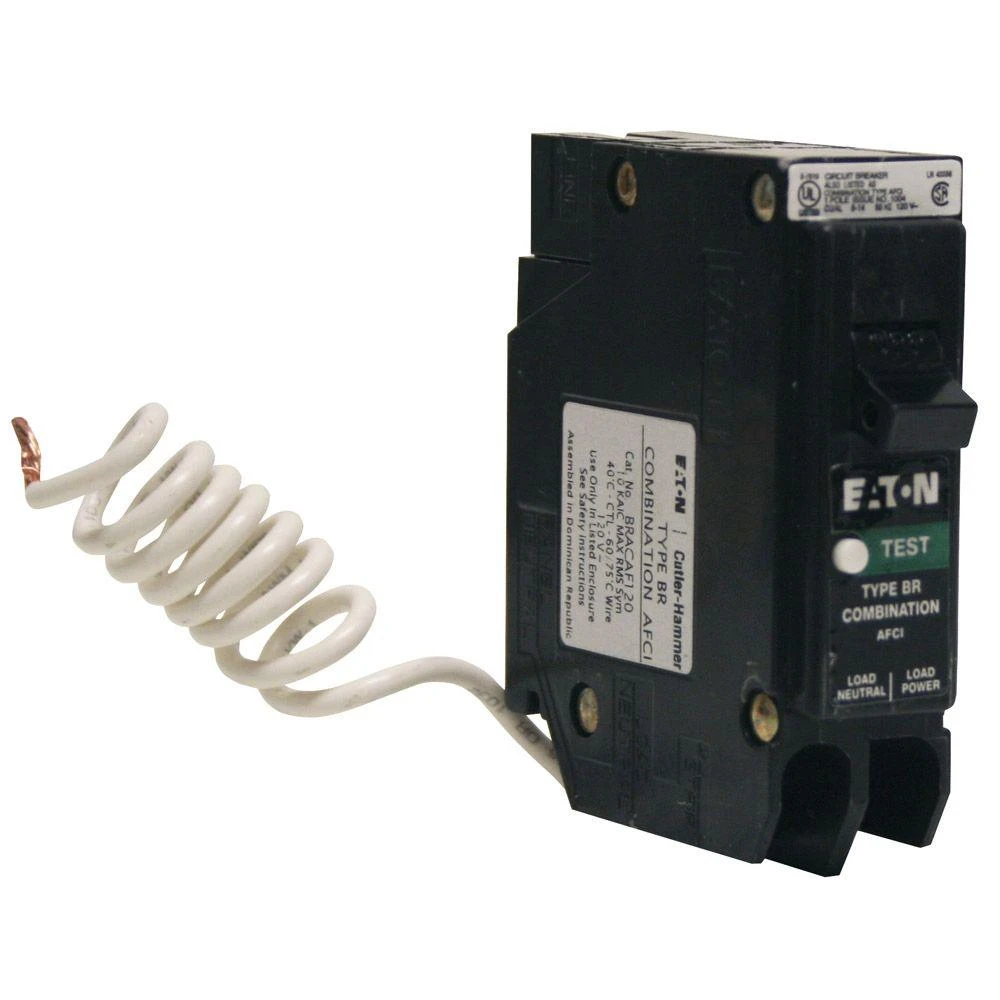

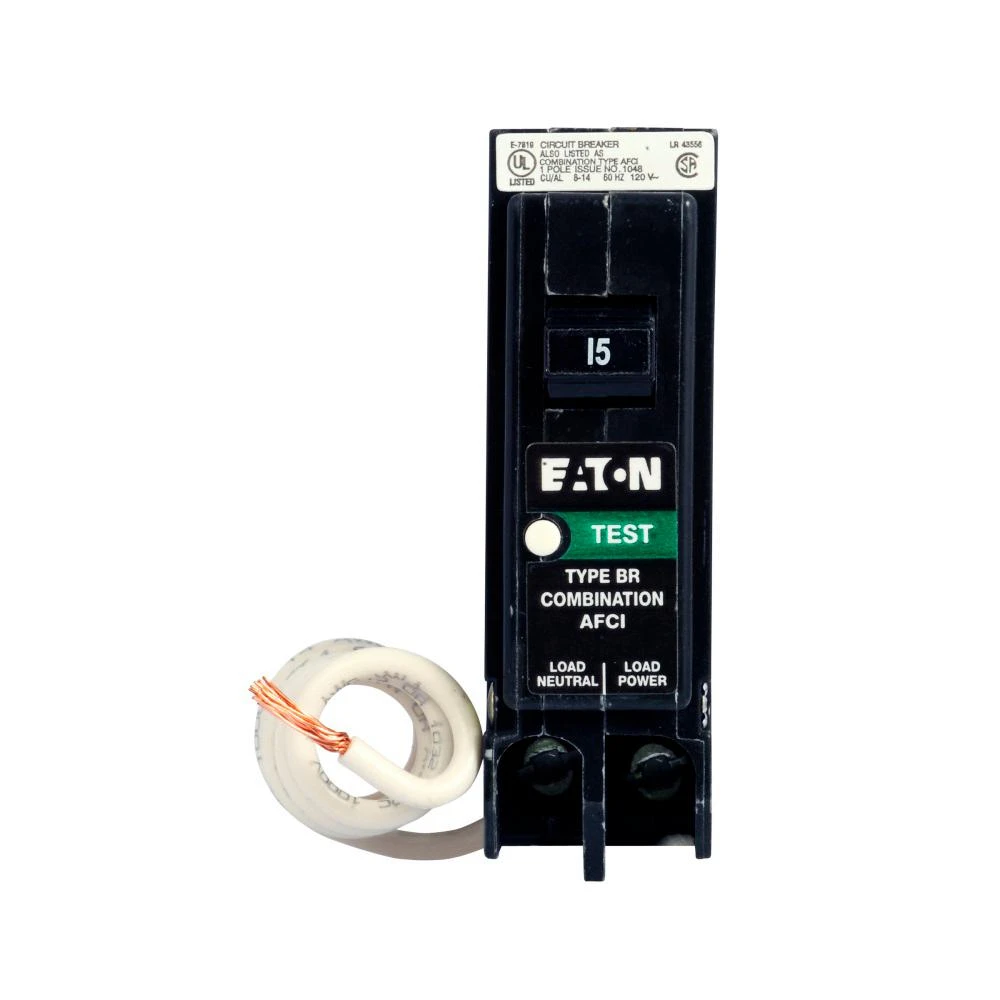

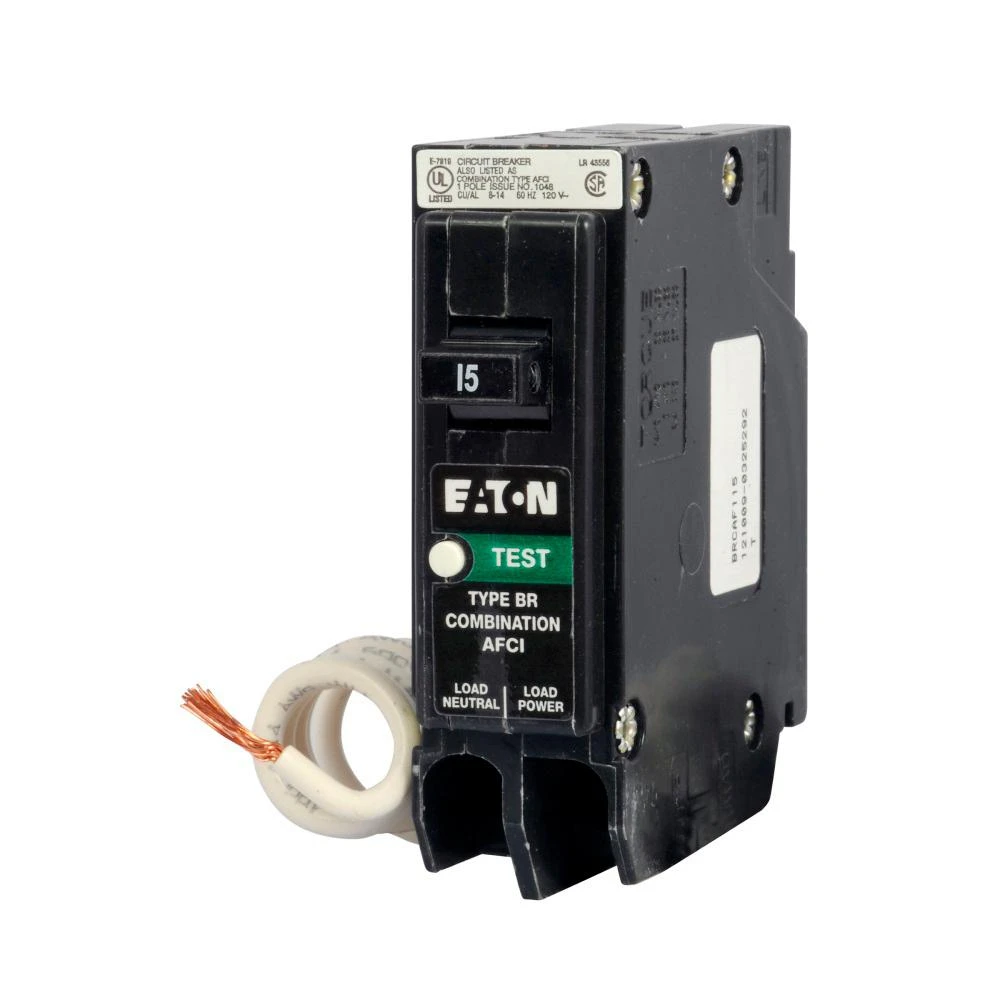

BR 15 Amp Single-Pole Combination Arc Fault Circuit Breaker
Original price was: $41.51.$29.06Current price is: $29.06.
- Secure Shopping Starts with Safe Payments
- We take quality seriously.
- Experience the Best Quality
- Buy with Confidence, Get Quality
Eaton’s Arc Fault Circuit Interrupters (AFCIs) use advanced electronic technology to reduce fire hazards in electrical circuits, including connected cords. They meet the requirements of the UL Standard for Safety, UL 1699 for devices that reduce the effects of persistent arcing faults that may pose a risk of fire under certain conditions. Arcing creates high intensity heating at the point of the arc resulting in burning particles that may over time ignite surrounding material, such as wood framing or insulation. The BRCAF15 is a 15 amp combination type breaker that includes all of the protection of the branch feeder, plus it directly detects persistent low current arcing faults down to 5 amps to efficiently protect against fire hazards in the cords connected to outlets.
- Combination type includes all of the protection of the branch feeder, plus it directly detects persistent low current arcing faults down to 5 amps to efficiently protect against fire hazards in the cords connected to outlets
- FIRE-GUARD model AFCI recognizes the unique current and/or voltage signatures associated with arcing faults and efficiently interrupts the circuit to reduce fire hazards
- Branch feeder mitigates parallel arcing faults, which produce the most energy of all arcing faults, in the complete circuit including connected cords for enhanced safety
- For use in type BR load centers
- Amperage: 15 Amp
- Mounting: standard pigtail
- Interrupt rating – 10 kAIC
- Voltage rating is 120
- Wire size – #14-4 AWG Cu/Al at 60°C or 75°C
Features
| Item Weight | .38 |
| Maximum Amperage (amps) | 15 |
| Number of Poles | 1 |
| Interruption Type | AFCI |
| Voltage (volts) | 124/240 |
| Product Weight (lb.) | .45 |
| Power Distribution Features | No Additional Features |
| Pack Size | 1 |
| Mounting Type | Plug In |
| Returnable | 180-Day |
| Breaker Type | Single Pole |
| Electrical Product Type | Breaker |
| Product Height (in.) | 8.0 |
| Product Depth (in.) | 1.13 |
| Product Width (in.) | 4.0 |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | 5 Year Per the Warranty Statement |
| Item Weight | .38 |
|---|---|
| Value | each |
